DV3K Dongle Architecture

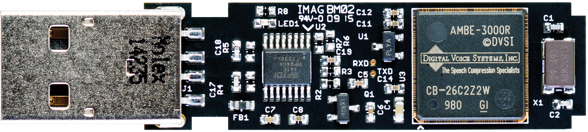

1. The DV3K Dongle uses two chips, oscillator, and discrete logic to implement it’s functionality.  The chips, from left to right, are the FTDI FT230X serial to USB converter and the DVSI AMBE3000 vocoder.


1. More information may be found at the following web sites:


1. FTDI FT230X - http://www.ftdichip.com


2.


3. DVSI AMBE3000 - http://www.dvsinc.com


4.


5. DV Dongle Yahoo group:  http://groups.yahoo.com/group/DVDongle
